British Aircrew Mk8 Goggles

Probably the most well-known of British flying goggles due to appearances in war films and media, and there being a replica type of goggle made by Stadium for motor cycling closely copying the Mk8, but with threaded adjuster instead of the slider (sometimes unofficially referred to as the "Mk9"). Some seemingly new condition Mk8 goggles also occasionally appear, which are the result of careful rebuilding (new soft parts, and re-painted original frames).

RAF / RN Resources

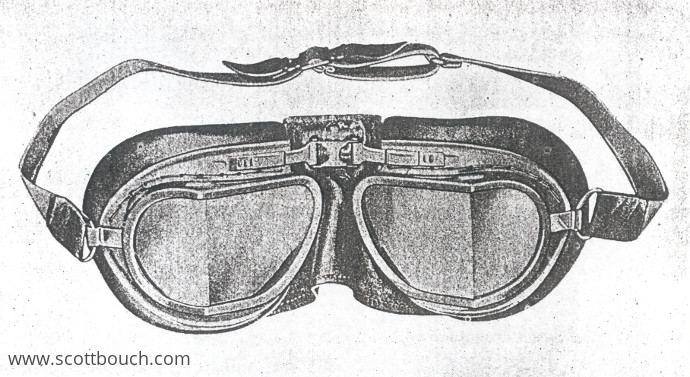

AP4380, Section 5, Item 22 (AL 11, dated somewhere between 1952 and 1961)

British Aircrew Goggles Mk8

Quote:

Use
General for flying personnel, to protect the eyes from airstream, glare, fire and splinters.

Details
The facepiece is made of leather padded with felt and can be adjusted to suit the wearer. Clear safety-glass windows are mounted in metal frames; tinted windows are also available. An anti-dimming outfit is provided.

References
A.P.1182E, Vol. 1, Sect. 1, Chap. 6 (general information)
A.P.1275A, Vol. 1, sect. 9, Chap. 5 (detailed description)
A.D.3963

Exhibit

Mk8 Flying Goggles, undated

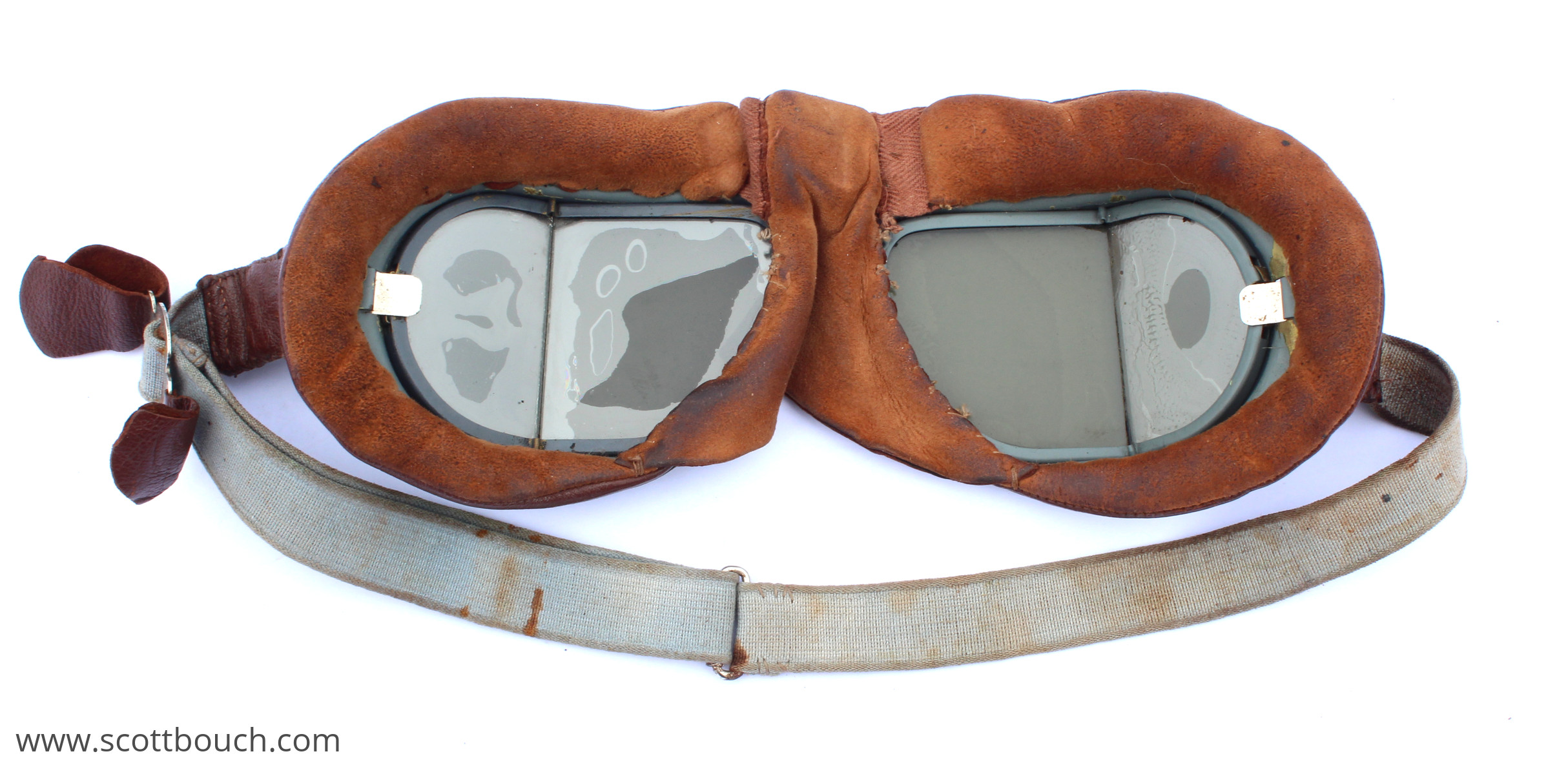

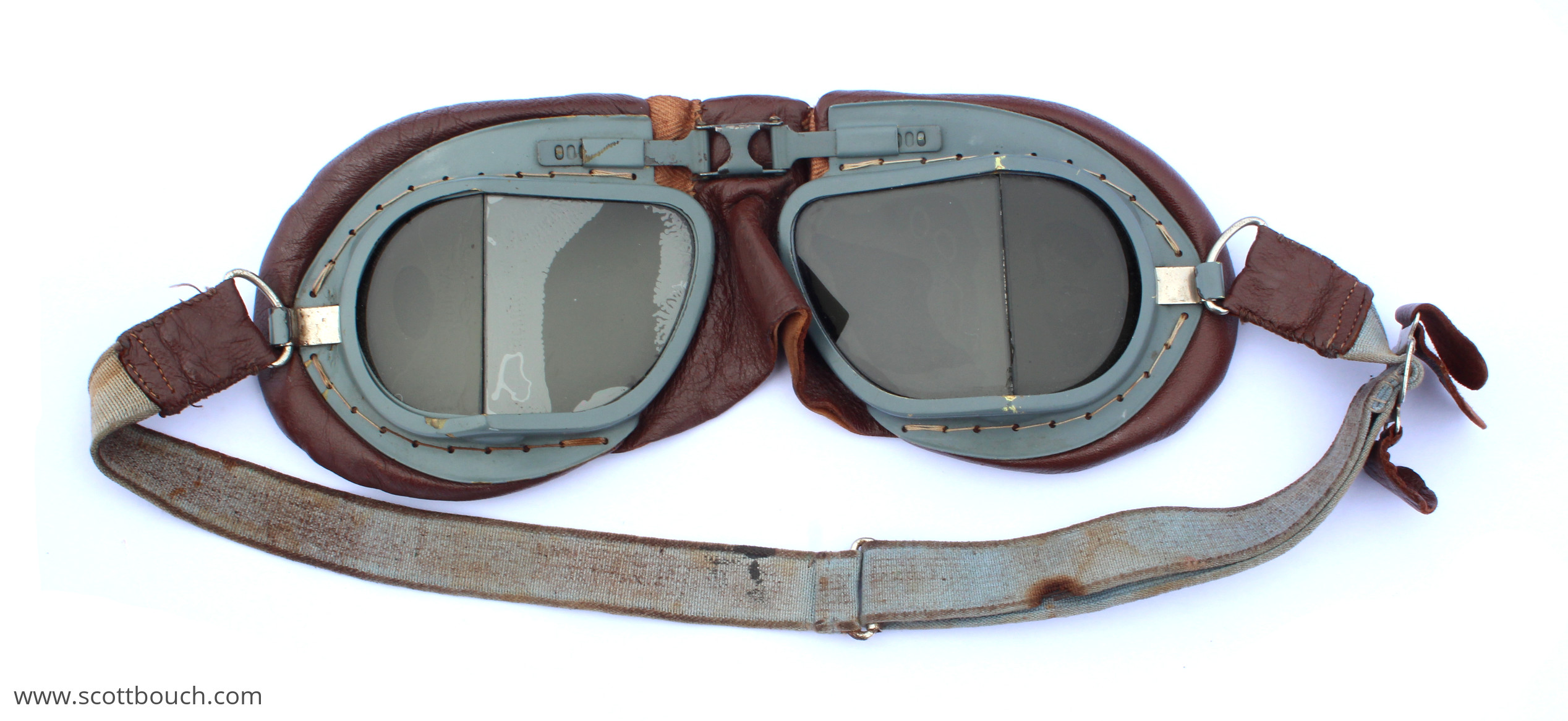

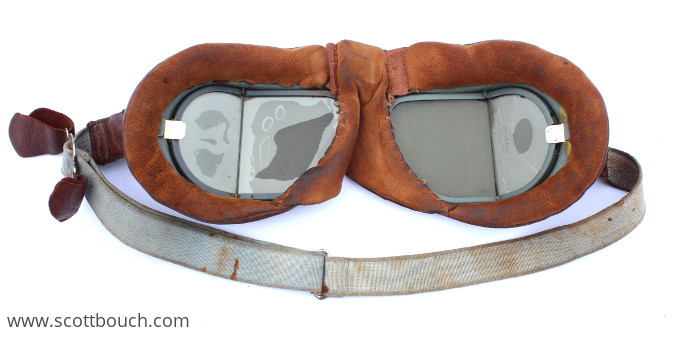

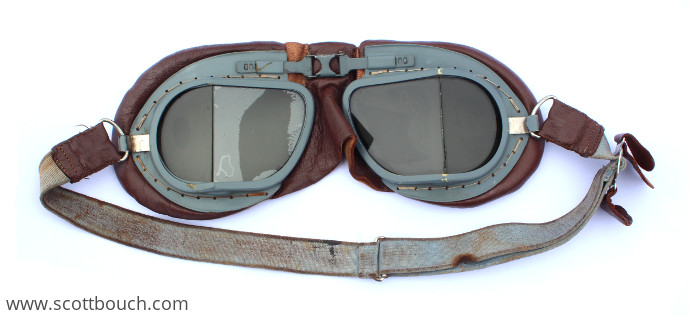

These Mk8 goggles were well used when I acquired them, showing signs of service life. Since then I have used them for a bit of reenacting with classic jets. unfortunately due to age, the glass lenses / windows have started to de-laminate as can be seen in the images below.

British Aircrew Goggles Mk8 British Aircrew Goggles Mk8

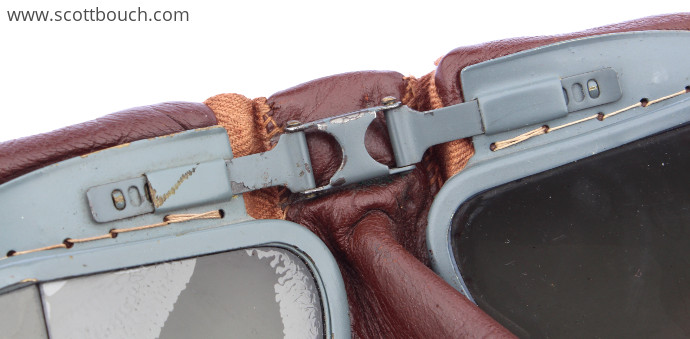

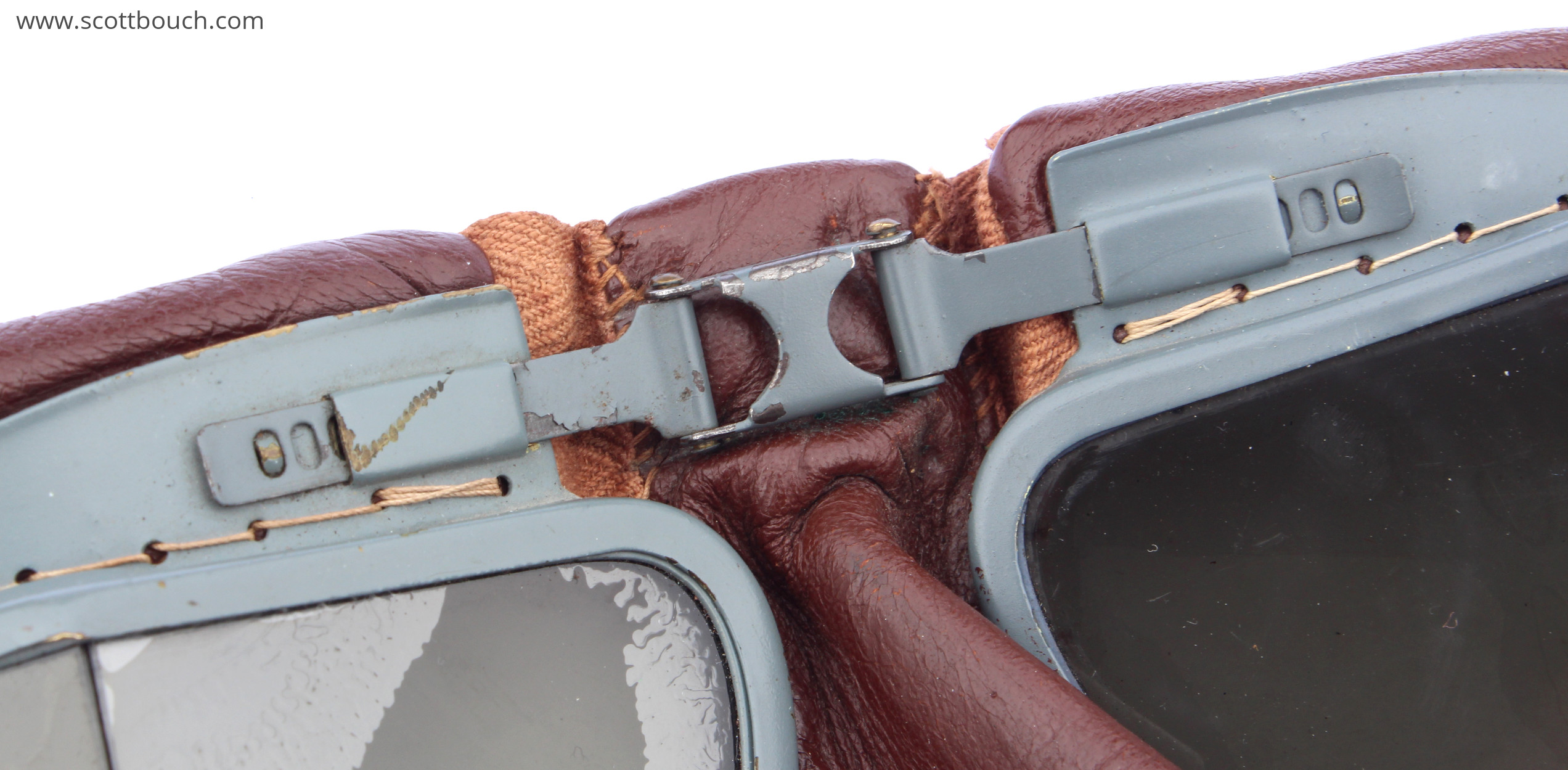

Across the bridge of the nose are the size adjustment sliders, here shown in fully extended position.

British Aircrew Goggles Mk8

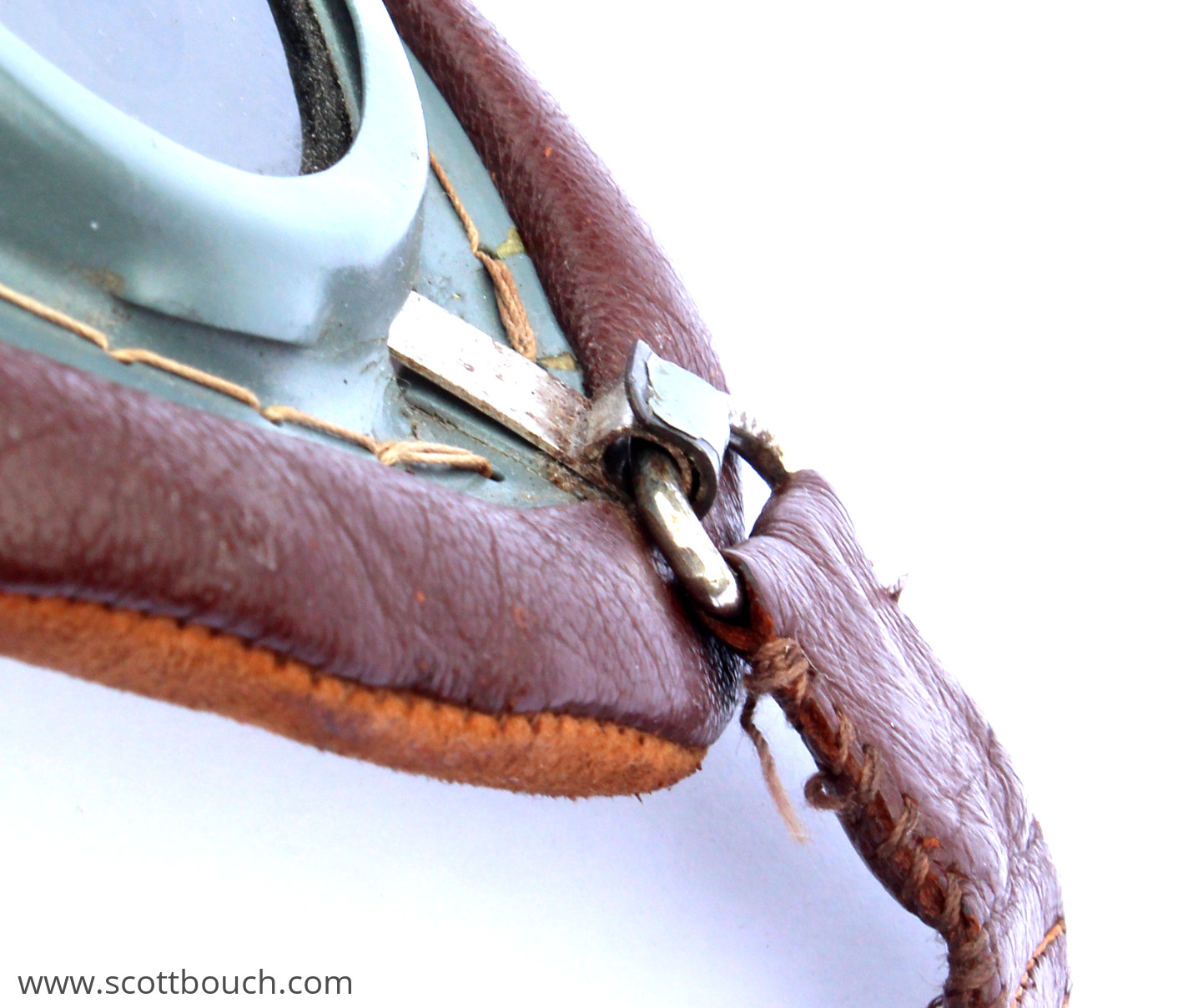

The lenses / windows are released by detatching the headband strap , the chromed tangs keep the lenses in place.

British Aircrew Goggles Mk8
