British Aircrew Mask PEC Mk2

Stores Ref: 6D/2169 | Martin Baker Part No: MBEU/13550

The Mk2 PEC was only used in the RAF for the Canberra T13, and Vulcan B2.

A "Bomber Type" PEC for low altitude, it provided connections for: breathing oxygen, AVS, and communications.

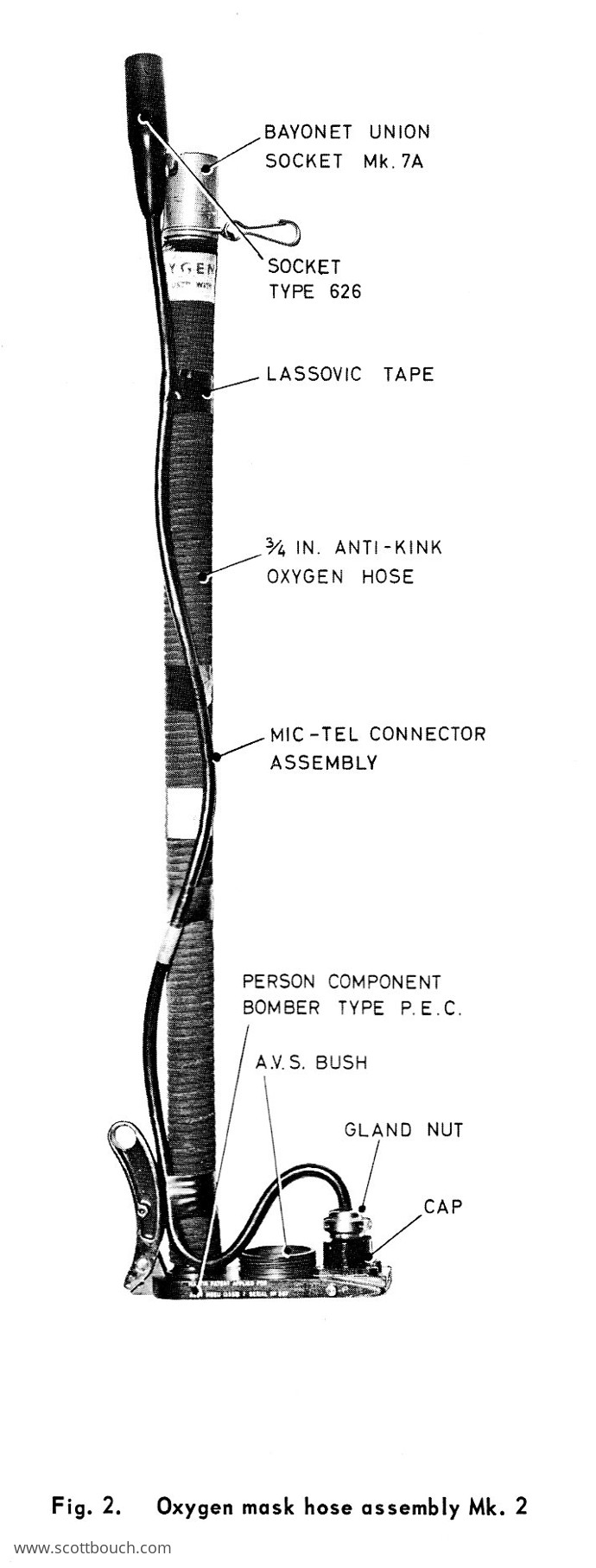

The upper end of the oxygen hose is fitted with a Mk7A oxygen bayonet connector, and the communications cable is fitted with a 626-Type socket, commonly known as the "UK NATO socket". The commucnications cable is attached to the oxygen hose with either "Lassovic Tape" or John Bull S-Pattern Cable Clips.

Manufacturers Resources

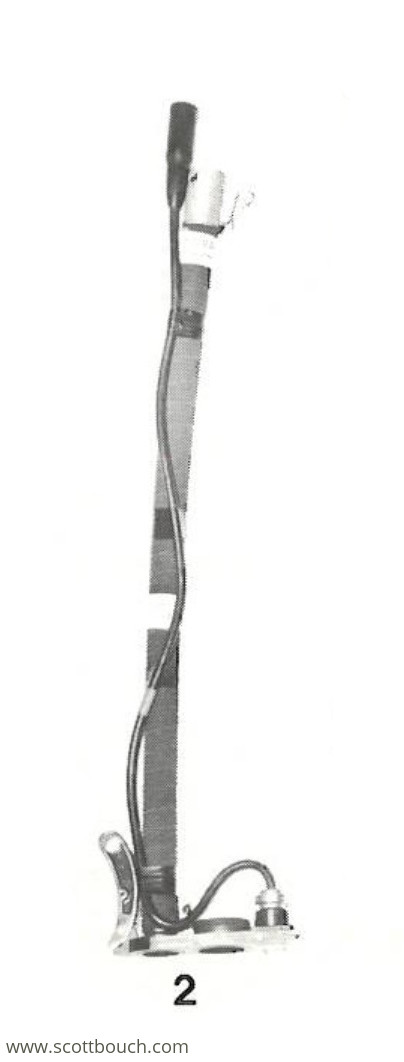

Overview of personal equipment connectors, Airmed, WW191 Issue 4, July 1975
