PUPIL'S FLAP SWITCH

---

LEADING PARTICULARS

Stores Ref. No.:	5CW/7455
Manufacturer:	N.S.F.
Attachment:	-
Connection:	Screw terminals, 4BA
Accessories:	Knob, flap switch

---

DESCRIPTION

The pupil's flap switch is a 2 position switch, and is ony active when the instructor's flap switch is in the central position.

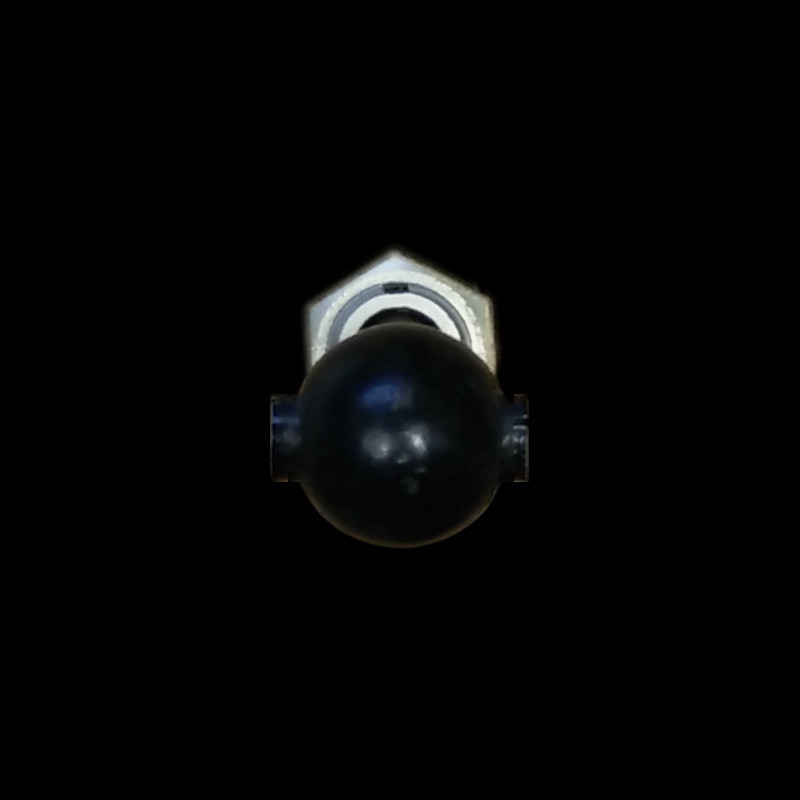

The switch is fitted with a flap switch knob seen painted black or sometimes grey.

---

SIMULATION

---

REFERENCES

Switch APs:
AP4343C, Vol. 1, Sect. 1 Chap. 34, A.L. 33, Aug. 1955, Manually operated switches
AP4343C, Vol. 1, Sect. 1 Chap. 4, A.L. 39, Jan. 1961, Tumbler Switches, C.W.C. Equipment Ltd.
AP4343C, Vol. 1, Sect. 1 Chap. 28, A.L. 79, Feb. 1963, Tumbler switches, Rotax, D5400 and D5500 series

T Mk.5 electrical "Vol 1":
AP101b-1005-1b, Sect 6, Chap 3, AL2, Jan 1965, Flying Controls - Paragraph 8

T Mk. 5 wiring diagrams:

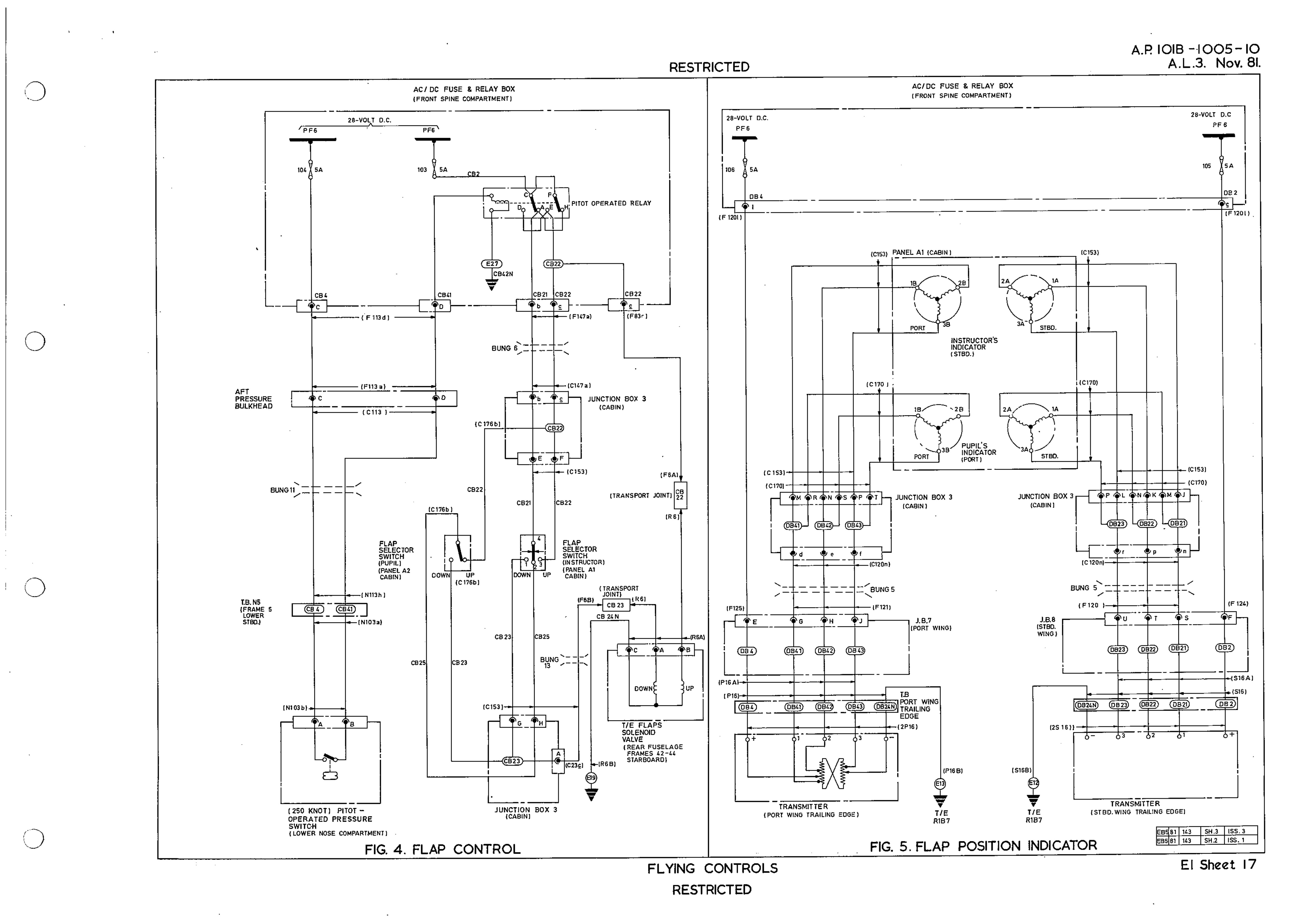

AP101B-1005-10, Sheet 17, AL3, November 1981, Flying Controls - Flaps - Fig 5
