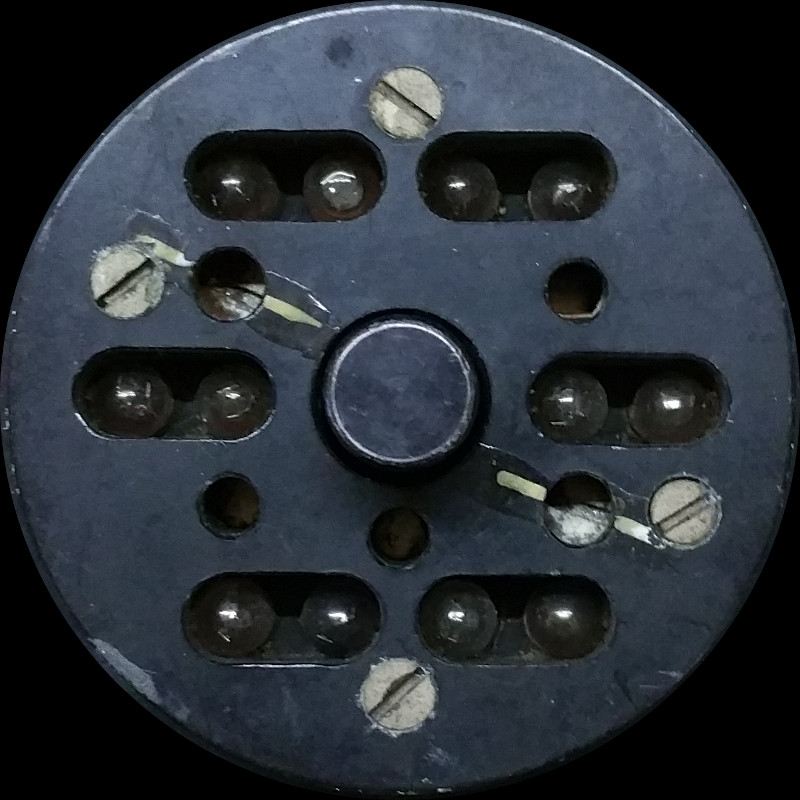

ARMAMENT INDICATOR TYPE C.3420 (Missing Facia)
LEADING PARTICULARS
| Stores Ref. No.: | 5CZ/4329914 |
| Manufacturer: | Page |
| Attachment: | 28D/9128773 | AS.3294/1B | Bolt, 4BA phillips recess, 90° csk head | Qty: 4 |
| Connection: | UK-AN / MIL-C-5015, 10 way |
DESCRIPTION
The armament indicator indicates the status of aircraft weaponry. It contians 6 windows, with two fillament bulbs behind each window for redundancy. The windows can be dimmed by a sliding smoked shutter, actuated by a control on the facia.

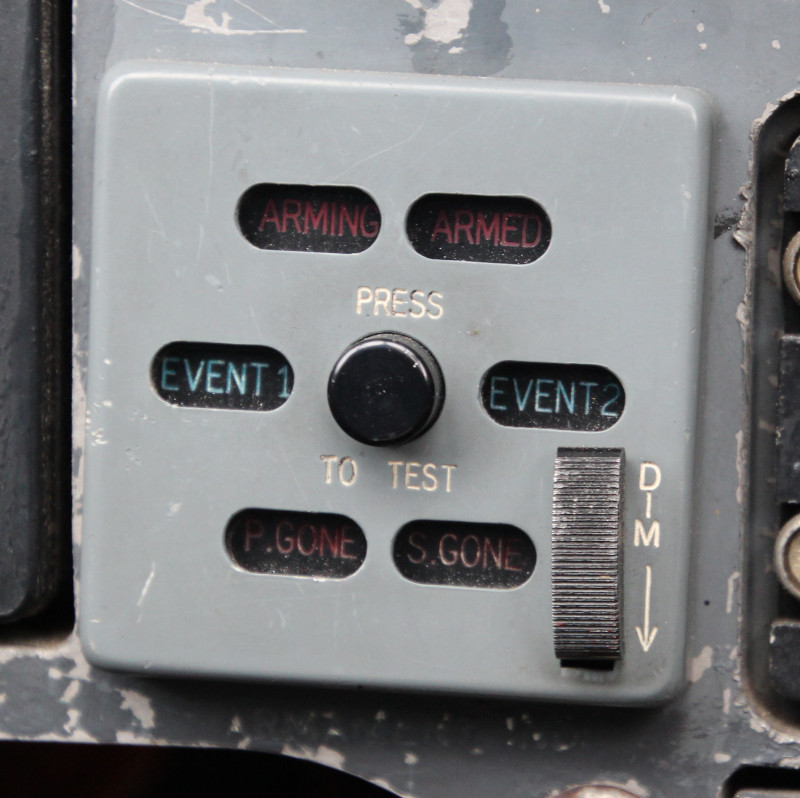

Example image of facia from XS458
There is also a central push-button to test all indicator lamps, which is only active when the undercarriage is down.
SIMULATION
As weaponry is not modelled within Flightgear, the software behind this indicator will only represent the press-to-test power supply.
CIRCUIT DIAGRAM

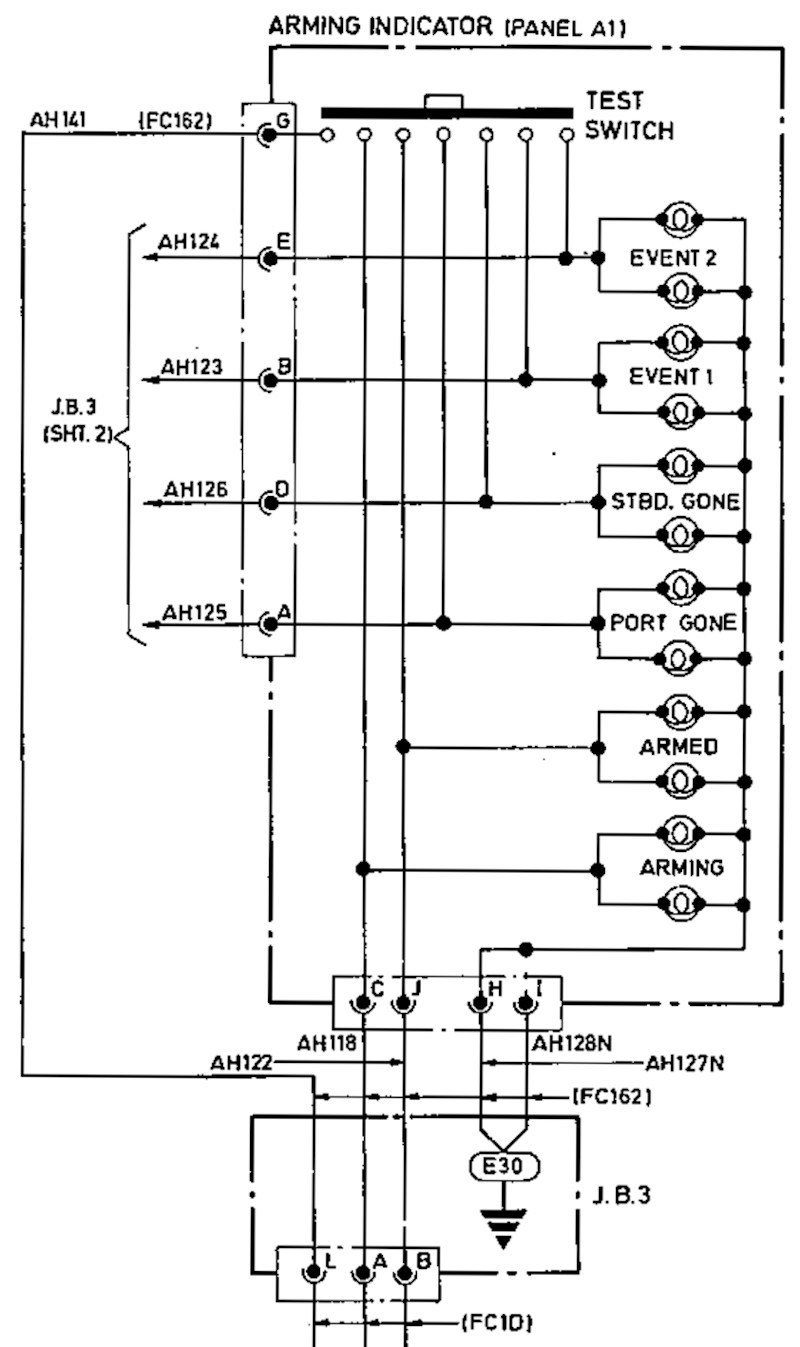

Internals of the Type C.3420 indicator from AP101B-1005-10, Sheet1, Fig 1, A.L.3, Nov 1981:
WANTED
I have the rear housing of the indicator, so am in need of the clip-on facia as below, or a complete unit. Please see support if you can help out in any way.
REFERENCES

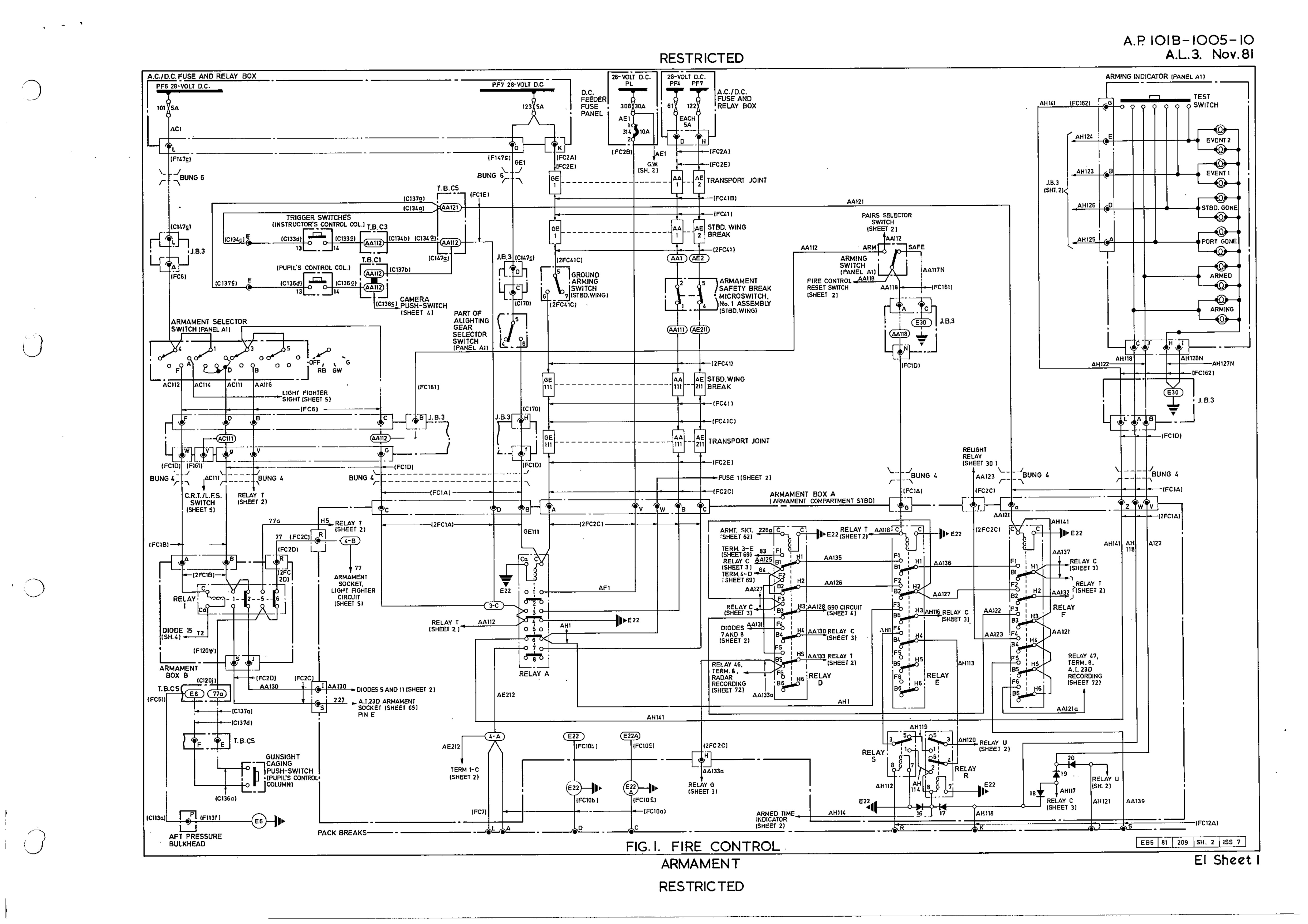

T Mk.5 wiring diagrams:
AP101B-1005-10, Sheet 1, A.L.3, Nov 1981, Armament - Fire Control
