JET PIPE NOZZLE POSITION INDICATOR
TYPE PW.928F.L

LEADING PARTICULARS

Stores Ref. No.:6A/2209056
Manufacturer:Smiths
Connection:Screw terminals
Attachment:20D/1213897 | AS.3295/3B | Bolt, 4 BA, phillips recess, 90 c'sk head
28M/1086618 | AGS.2002/B/1 | Nut, stiff, 4 BA
28W/9419401 | SP10/B | Washer, 4BA, plain

DESCRIPTION

This indicator presents the position of the jet pipe nozzles, which move to different positions during reheat engagement.

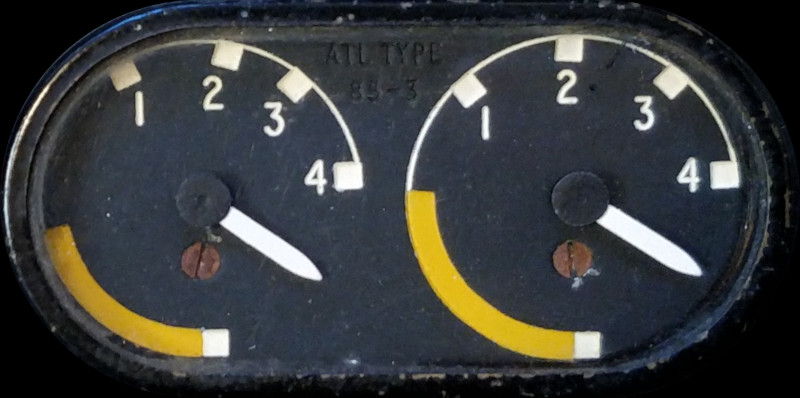

The indicator shown here is not the correct type for the T Mk.5 or T Mk.55 Lightnings - marked with numerals, it is suited to earlier types. But until a correct type comes available it will be used.

SIMULATION

This indicator works on the Desynn princpal, where a transmitter fitted to the jet pipe nozzle mechanism reports the nozzle positoin back to the cockpit indicator.

REFERENCES

T Mk.5 electrical "Vol 1":
HERE - Paragraph HERE

T Mk. 5 wiring diagrams:
HERE - HERE
