British Aircrew High Pressure PEC Mk3
Stores Ref: 6D/2249578 | Martin Baker Part No: MBEU/42184
Stores Ref: 6D/6254255 | Martin Baker Part No: MBEU/42184
The Mk3 High Pressure PEC only used for Jaguar Aircraft.
A "high Pressure Type" PEC for low altitude, it provides connections for: breathing oxygen, anti-G trousers, and communications.
The High Pressure hose delivers oxygen to a miniature chest mounted pressure regulator Type 417A, to which a V2-Type or X2-Type oxygen mask is connected.
Instead of the PEC Seat Portion being responsible for disconnecting the PEC Man Portion, a new method is employed, whereby the lanyard from the leaver is pulled on by life preserver when the occupant separates form the seat.
Exhibit

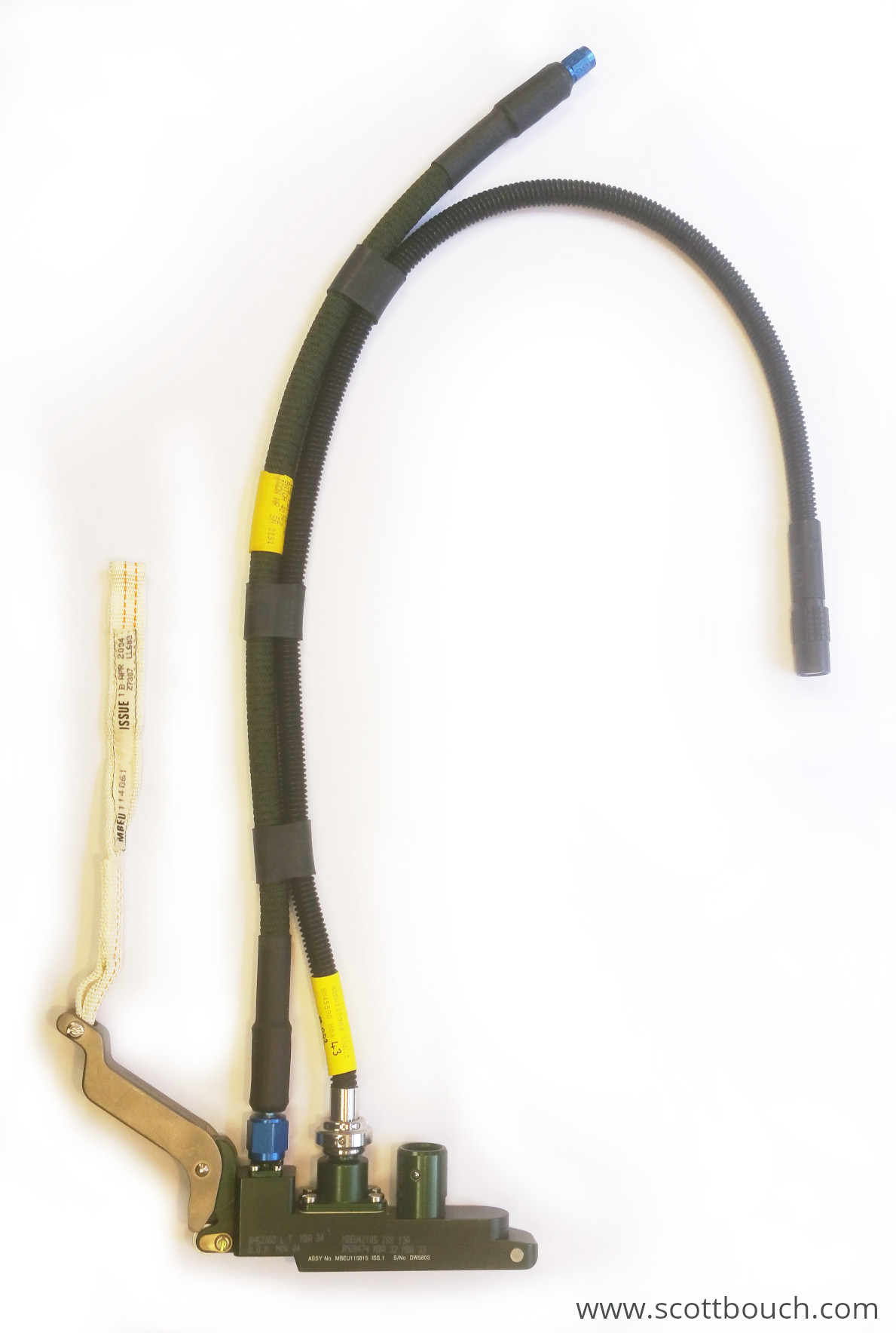

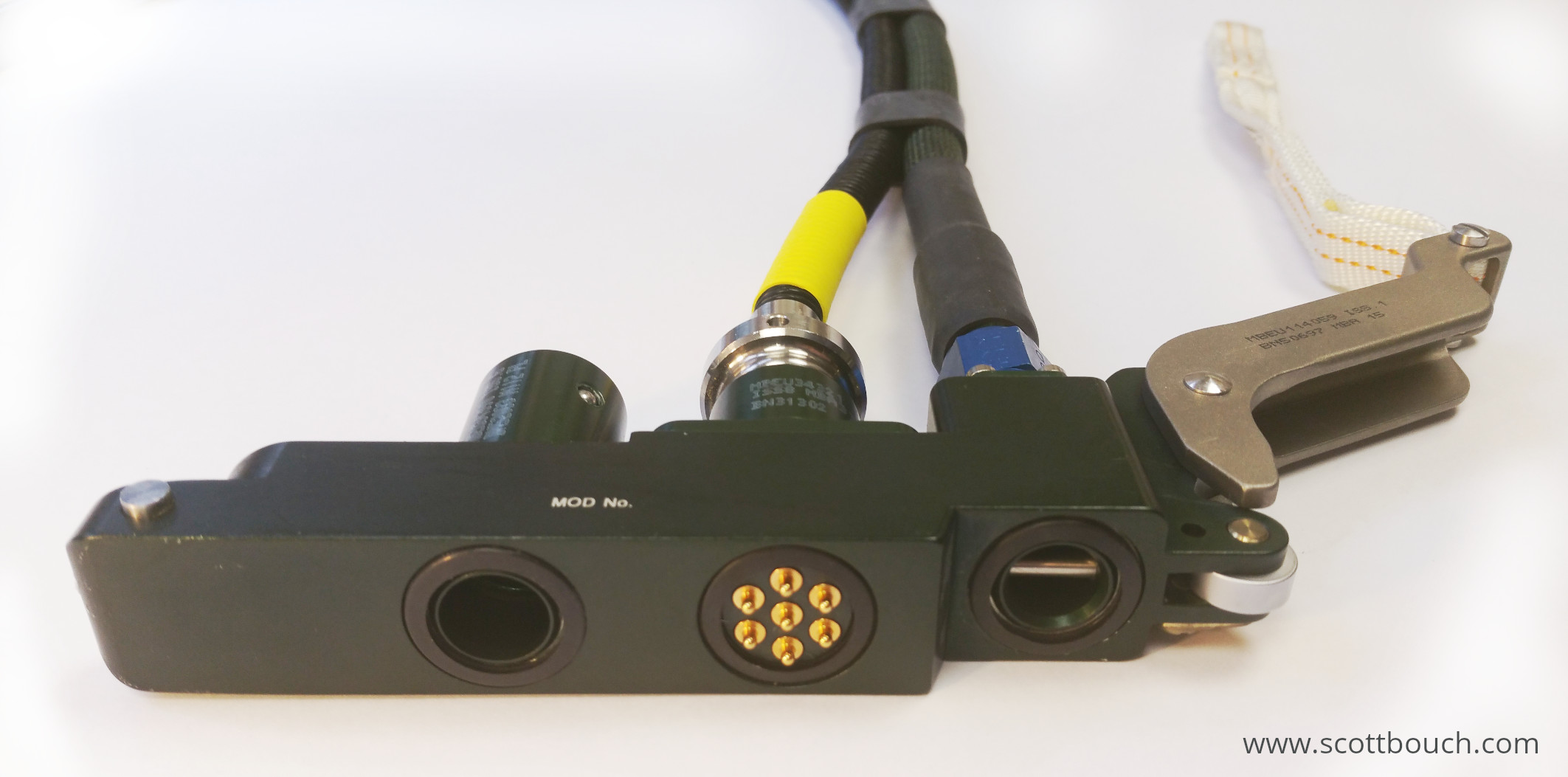

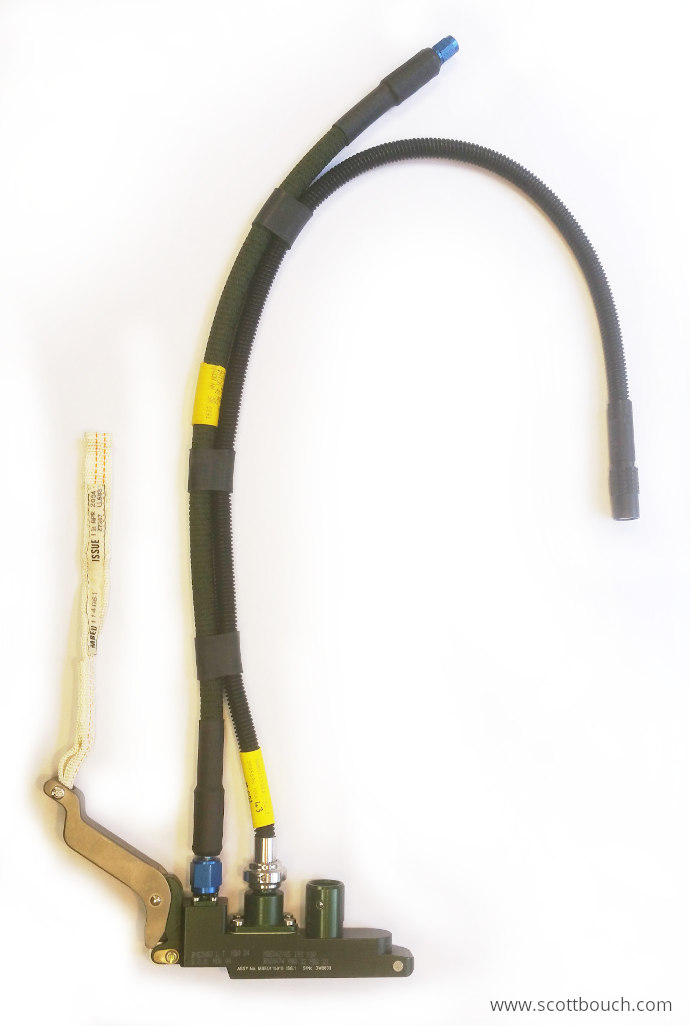

Mk3 High Pressure PEC dated November 2004

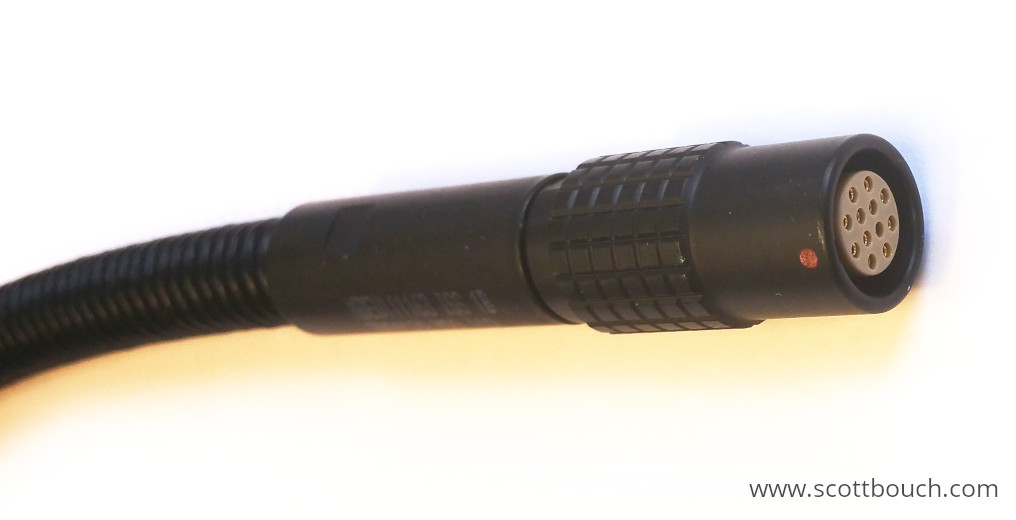

Part number MBEU/42185, one digit on from the number documented below, however, the main differnece I can see is the LEMO communications connector, vs the NATO socket 626-Type on the MBEU/42184.
RAF Resources
AP108F-0904-1, Chap1-2, Para 13 (1983)
Quote:
The hose assembly, high pressure Mk 3 is designed for use by the ejection seat occupants of Jaguar aircraft. It is similar to the Mk 2 assembly but it has a lanyard permanently attached to the man portion operating handle and has no gaiter. The lanyard contains a loop on the free end through which is passed the strap on the life preserver before the strap is connected to the personal survival pack lowering line.

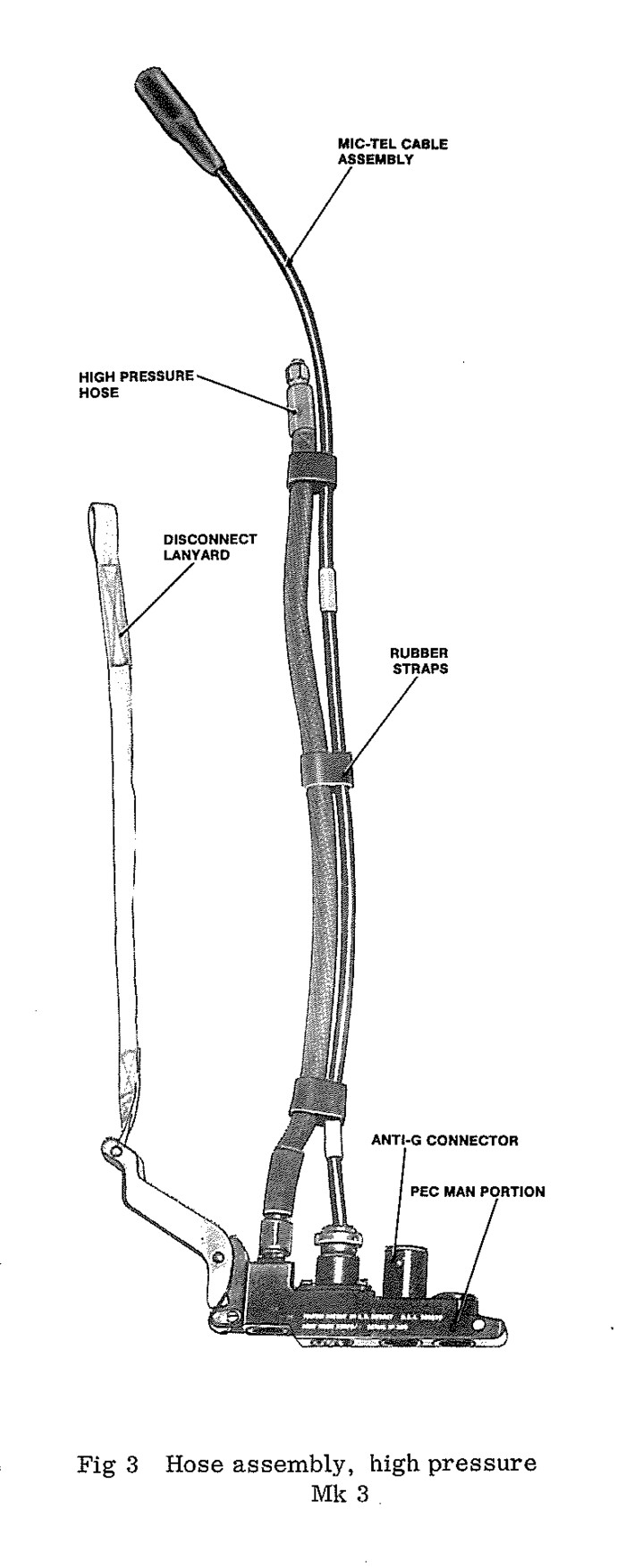

AP108F-0904-1, Chap1-2, Fig3 (1983)
This image shows a High Pressure Mk3 PEC.
